| Quantity: | |
|---|---|
CD-TrueX800860
CAIDAO
l Iron ore (hematite, titanium, iron, etc.)
l Copper (chalcopyrite, cuprite, malachite etc.)
l Chromium (chromium spinel, chromite, chrombismite etc.)
l Molybdenum(copper molybdenum,molybdenum,tungsten and molybdenum ore etc.)
l Tungsten (tin tungsten scheelite, wolframite, etc.)
l Tantalum ore (tantalite columbite, pyrochlore, etc.)
l Lead-zinc ore (galena, sphalerite, cerussite etc.)
l Nickel laterite ore, copper nickel sulphide etc.
l Gold in ore or alluvial gold detection.
Exact grade evaluation for high grade and beneficiated ores, then provide value foundation for ore trade, processing and recycling.
The relict ore element analysis in slag and tails to rejudge the value.
Conduct QC in ore mining, boring, grinding, concentration and smelting, then confirmgrade, make analysis to filter weld pool, storage pool and steel tank liquor.
Quick census for superlarge range mine area to determine zone mode, draw mine map and timely prospect effectively.
Site quickly trace mineralized abnormality, seek hotspot zone and delineate ore boarder effectively.
Accurate analysis for millhead, concentrated ore and slag to build high efficiency mining and gathering process.
Through site analysis, mine field and grade control on material delivery, ore concentrate and slags, you can confirm or track the procedure validity of refining or concentration.
By time analysis several samples on the spot, you can guide exploration plan then manage excavation and explosion effectively.
Determine the geological composition of soil, sediment or drilling sample locally to control prospecting cost.
Apply with GIS/GPS to make detailed decision then can save much time and labor cost.
Multi-elements site fast analysis can be used in procedures in census and sift, then track mineral content abnormity and expand survey range. It can decrease samples amount sending to lab then save transportation and analysis cost.
Judge ore vein trend and mineral boundary then manage and control mining to detect mineral grade at any time.
Analyze rock core and other drilling samples quickly, then establish mine 3D graph to analyze composition, which can enhance site decision efficiency largely.
Analyze and test mine surrounding environment, slags, dust and soil pollution, then evaluate mine mountain condition renovation effect.
1.Small, light and easy to carry.
2.High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3.High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4.Industrial resistive touch screen, superior to capacito screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.
5.Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
6.Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover,TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm whenambient temperature or humidity exceeds the scope of application.
7.On TrueX, users can customize the reports by adding their company logos, addresses,test
results, spectrum and others (such as product description, origin of products and batch number).
8.TrueX is built with double beam technology which can automatically sense whether there is
a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.
9.TrueX can be configured and maintained in a remote way via Internet.
10.TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
11.TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition.
12.TrueX has a built-in environmental sensing system covering conditions such as temperature,dust humidity and others.

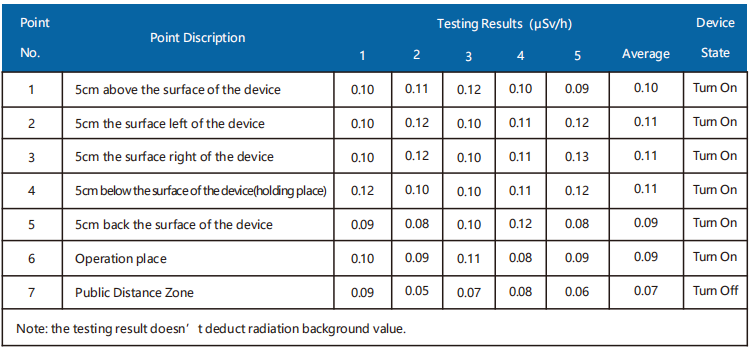

1. Radiation Safety Guarantee
Low power (4W) X-ray tube, mini collimator reduce radiation quantity effectively;
X-ray tube radiation protection shield avoids X-ray escape;
The structure producing radiation is all in equipment interior, you don't need to align or calibrate X ray, then ensure not detect any measurable radiation in equipment operation process;
X ray indicator light alarms user the radiation produciton;
Independent safe circuit and DoubleBeam interlock tool can protect user safety effectively;
Conform to dosage limit requirement in <Radiation protection standards for X-ray diffraction
and fluorescence analysis equipment> (GBZ115-2002);
Conform to valid annual dosage limit requirement for workers and public in<Ionizing;
Radiation Protection and Safety of Radiation Sources basic standards> (GB18871-2002).

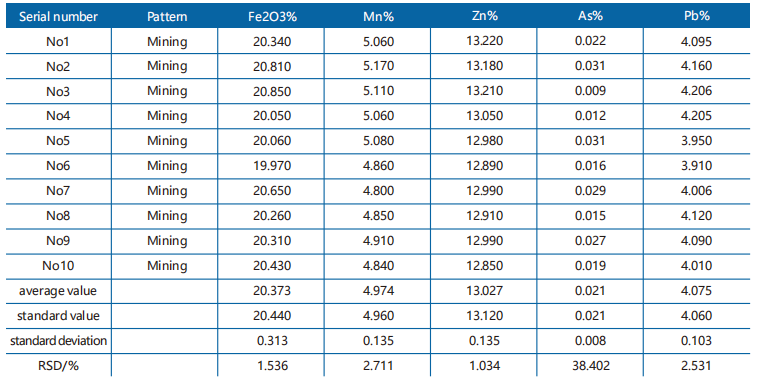

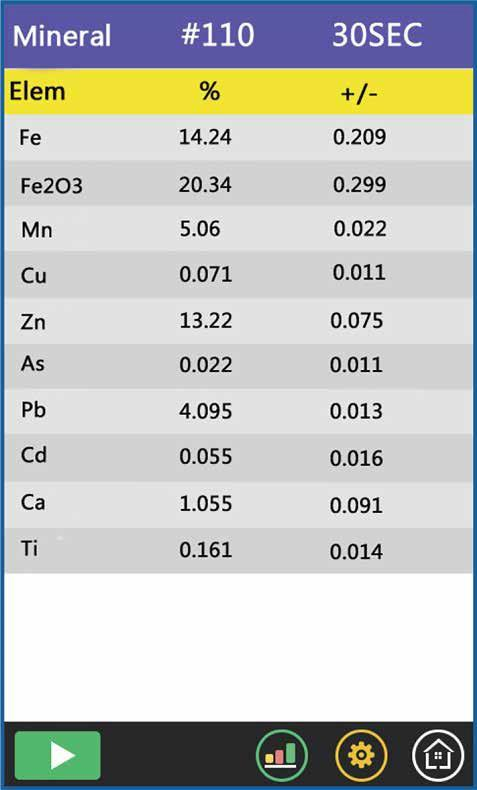

2. Monitoring results
l Iron ore (hematite, titanium, iron, etc.)
l Copper (chalcopyrite, cuprite, malachite etc.)
l Chromium (chromium spinel, chromite, chrombismite etc.)
l Molybdenum(copper molybdenum,molybdenum,tungsten and molybdenum ore etc.)
l Tungsten (tin tungsten scheelite, wolframite, etc.)
l Tantalum ore (tantalite columbite, pyrochlore, etc.)
l Lead-zinc ore (galena, sphalerite, cerussite etc.)
l Nickel laterite ore, copper nickel sulphide etc.
l Gold in ore or alluvial gold detection.
Exact grade evaluation for high grade and beneficiated ores, then provide value foundation for ore trade, processing and recycling.
The relict ore element analysis in slag and tails to rejudge the value.
Conduct QC in ore mining, boring, grinding, concentration and smelting, then confirmgrade, make analysis to filter weld pool, storage pool and steel tank liquor.
Quick census for superlarge range mine area to determine zone mode, draw mine map and timely prospect effectively.
Site quickly trace mineralized abnormality, seek hotspot zone and delineate ore boarder effectively.
Accurate analysis for millhead, concentrated ore and slag to build high efficiency mining and gathering process.
Through site analysis, mine field and grade control on material delivery, ore concentrate and slags, you can confirm or track the procedure validity of refining or concentration.
By time analysis several samples on the spot, you can guide exploration plan then manage excavation and explosion effectively.
Determine the geological composition of soil, sediment or drilling sample locally to control prospecting cost.
Apply with GIS/GPS to make detailed decision then can save much time and labor cost.
Multi-elements site fast analysis can be used in procedures in census and sift, then track mineral content abnormity and expand survey range. It can decrease samples amount sending to lab then save transportation and analysis cost.
Judge ore vein trend and mineral boundary then manage and control mining to detect mineral grade at any time.
Analyze rock core and other drilling samples quickly, then establish mine 3D graph to analyze composition, which can enhance site decision efficiency largely.
Analyze and test mine surrounding environment, slags, dust and soil pollution, then evaluate mine mountain condition renovation effect.
1.Small, light and easy to carry.
2.High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3.High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
4.Industrial resistive touch screen, superior to capacito screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.
5.Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.
6.Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover,TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm whenambient temperature or humidity exceeds the scope of application.
7.On TrueX, users can customize the reports by adding their company logos, addresses,test
results, spectrum and others (such as product description, origin of products and batch number).
8.TrueX is built with double beam technology which can automatically sense whether there is
a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.
9.TrueX can be configured and maintained in a remote way via Internet.
10.TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.
11.TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition.
12.TrueX has a built-in environmental sensing system covering conditions such as temperature,dust humidity and others.
1. Radiation Safety Guarantee
Low power (4W) X-ray tube, mini collimator reduce radiation quantity effectively;
X-ray tube radiation protection shield avoids X-ray escape;
The structure producing radiation is all in equipment interior, you don't need to align or calibrate X ray, then ensure not detect any measurable radiation in equipment operation process;
X ray indicator light alarms user the radiation produciton;
Independent safe circuit and DoubleBeam interlock tool can protect user safety effectively;
Conform to dosage limit requirement in <Radiation protection standards for X-ray diffraction
and fluorescence analysis equipment> (GBZ115-2002);
Conform to valid annual dosage limit requirement for workers and public in<Ionizing;
Radiation Protection and Safety of Radiation Sources basic standards> (GB18871-2002).
2. Monitoring results
