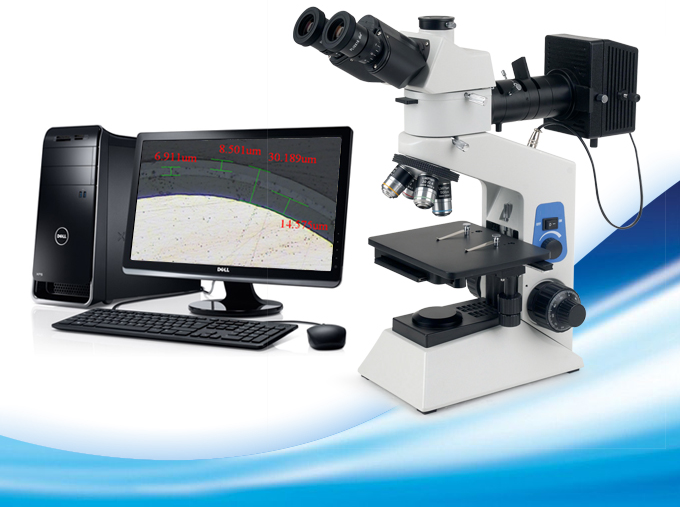

Material analysis microscope INTC-LV11 series
1. Optical system: Limited far chromatic aberration correction optical system, with good image quality
2. Eyepiece and objective lens
2.1 The high eye point flat field eyepiece PL10x has a line field of view of 18mm, provides a wide and flat observation space, and can be installed with various micrometers.
2.2 Long working distance professional achromatic metallographic objective.
2.3 No cover glass design for excellent image.
3. Lighting system: drop type Cora lighting and anti-reflection structure are designed to effectively prevent the interference of reflected light, so as to make the imaging clearer and the field contrast better.
4. Adaptive wide voltage 100V-240V, 6V30W halogen lamp is adopted. The filament center is adjustable and the light intensity is continuously adjustable, so that the lighting is more sufficient, and image quality is effectively improved.
5. Stage: composite mechanical mobile platform, coaxial adjustment at low hand position, and an 180mmx145mm flat platform is attached to the mechanical platform, which is suitable for placing large-size samples.
6. Accessories
6.1 Four color filters of yellow, green, blue and white can be added to the lighting light path to provide illumination with different chromaticity for observing various sample roots.
6.2 Polarizing mirror and polarizing mirror can be added to the lighting light path to realize polarizing observation.
6.3 The polarizer is adjustable ± 25 °, which can effectively adjust the orthogonal state or field contrast.
Technical specification of material analysis microscope INTC-LV11 series
Optical system | Finite far chromatic aberration correction optical system |
Observation tube | Standard: hinged binocular, 30 ° tilt, 360 ° rotation, and the visibility is adjustable. |
Optional: hinged three eyes, 30 ° tilt, 360 ° rotation, and the visibility is adjustable. | |
Eyepiece | High eye point flat field eyepiece L10X/18mm |
Objective | Long working distance flat field achromatic professional metallographic objective 5X, 10X, 20X, 50X, 100X |
Converter | Standard: four hole converter |
Optional: five hole converter | |
Focusing system | Coarse fine-tuning coaxial focusing mechanism, with elastic adjustment and upper limit device, coarse adjustment stroke of 25mm and fine-tuning accuracy of 0.002mm. |
Stage | Double layer mechanical stage, size 140mmx132mm (with 180mmx145mm flat platform) |
Lighting | Reflective Cora lighting, adaptive wide voltage 100v-240v, 6V / 30W halogen light intensity continuously adjustable. |
Accessories | Focusing C interface, polarizing accessories: polarizing mirror plug-in board, inspection mirror plug-in board. |
Objective parameters of material analysis microscope INTC-LV11 series
Item | Magnification | Numerical aperture (N.A.) | Working distance (W.D) (mm) | Cover glass thickness | Conjugate distance (mm) |
Long working distance flat field achromatic professional metallographic objective | 5X | 0.13 | 15.5 | 0 | 195 |
10X | 0.25 | 8.7 | 0 | 195 | |
20X | 0.40 | 8.8 | 0 | 195 | |
50X | 0.60 | 5.1 | 0 | 195 | |
100X | 0.80 | 2.0 | 0 | 195 |
Eyepieces parameters of material analysis microscope INTC-LV11 series
Eyepieces | PL10X/18 | PL10X/18R | WF15X/13 | WF15X/13R | WF20X/10 | WF20X/10R |
Number of F.O.V | 18mm | 18mm | 13mm | 13mm | 10mm | 10mm |

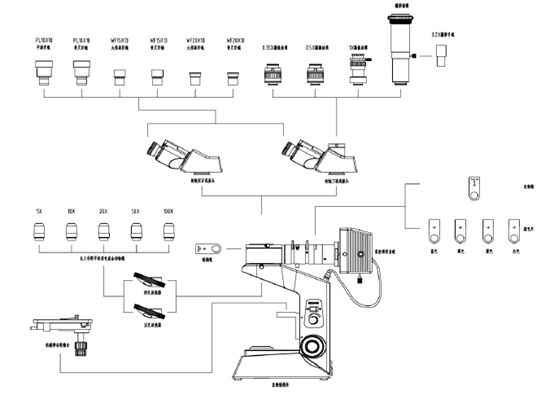

Configure of material analysis microscope INTC-LV11 series
