CD-Bohr
CAIDAO
It has good quality optical system, clear imaging lens and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.06%.Coordinate measurement deviation is ≤(3+L/200) um, L be regarded as the length of measured parts (mm).

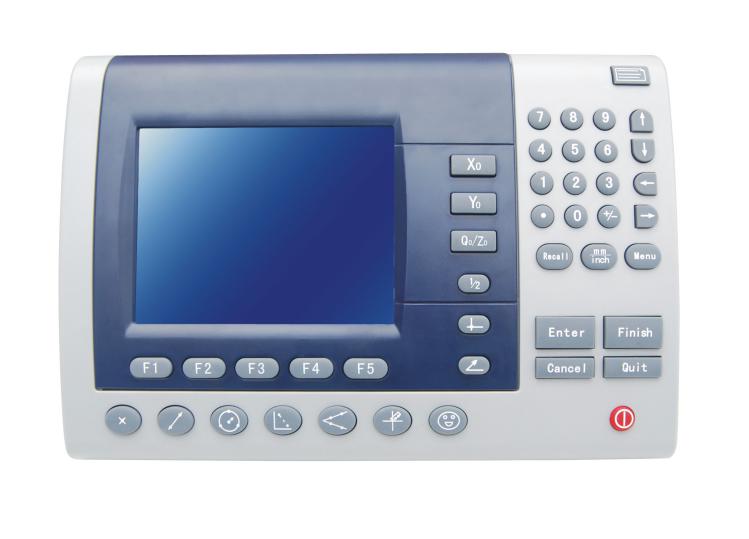

Instrument equipped with a dedicated mini-printer and foot switch, DP300 Digital Readout, which makes display and measuring very handy. The Digital Readout has a function of interchange between mm and inches.
Product Name | CD-Bohr Vertical Optical Profile Projector | ||
Model | CD-Bohr 3015 | CD-Bohr 3020 | CD-Bohr 3025 |
X,Y-axis Travel | 150*50mm | 200*100mm | 250*150mm |
Z-axis Travel | 100mm (Focusing) | ||
Accuracy | X/Y-axis:≤3+L/200(um) | ||
Screen Size | Ø 312mm Used range>Ø 300mm(with the meter line) | ||
Screen rotary range | 0°~360° | ||
Resolution | X-axis,Y-axis: 1´ or 0.01° | ||
Magnification | Standard: 10X. Optional: 20X, 50X, 100X. | ||
Power | 110V/220V(AC), 50/60HZ, Total power=400W | ||
Data Processing System | DP300, supporting English, Chinese, can be used to measure and gather the data of 2D of point, line, circle, angle, distance and so on. | ||
Cold | Forced air cooling | ||
Illumination | The illumination of transmission and reflection: 24V/150W-halogen lamp. | ||
Dimension | 788*524*1152mm | 770*550*1120mm | 770*550*1120mm |
Net Weight | 122 kg | 125 kg | 162 kg |
1. profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread,
gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement department.
4. Measurement data can output and connect printer and computer.
Application
PCB, smart phone, aerospace machinery, light, plastic mould, watch, aluminum extrusion etc.
